UR18650 NSX 3.7V 2600mAh original quality 20Ah 8C high discharge rate cylindrical battery cell

18650NSX 3.7v 2600mAh 20Ah 8C high discharge rate lithium rechargeable cylindrical battery cell

Classification:

Lithium Battery Cell （cylindrical）

SANYO battery

Online Message

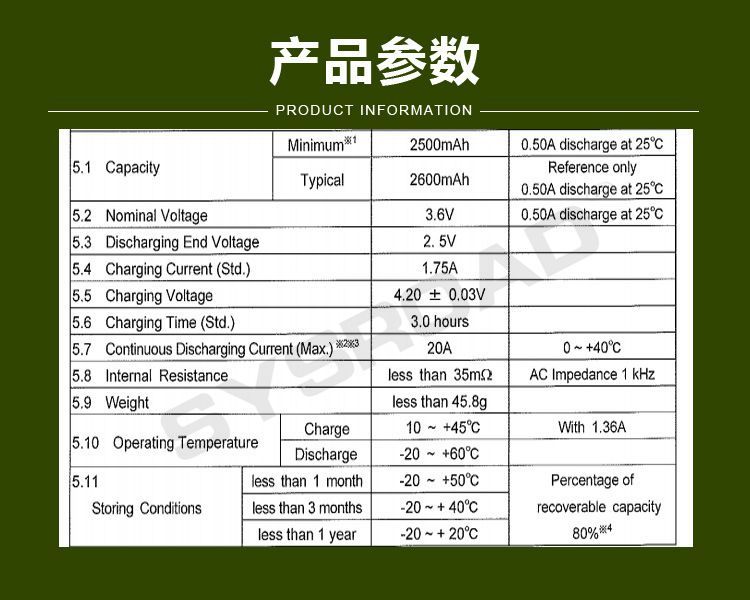

▌Specifications

Specifications: UR18650-NSX
Nominal voltage: 3.6V
Number of cycles: 500
Nominal capacity: 2600mah
Scope of use: power storage
Product certification: MSDS, UN38.3
Charging time: 1.5-2 hours
Cell standard: A product cell
Battery type: ternary lithium battery
Battery cap: flat
Charging voltage: 4.2±0.05 V
Discharge voltage: 2.5V
Charging current: 1c
Discharge current: 20A
Maximum continuous discharge current: 20A
Maximum Continuous Charge Current: 1
Series: 18650
Weight: 49.5
Storage temperature: -20~60°C
Product size: 18*65
Shelf life: 1 year

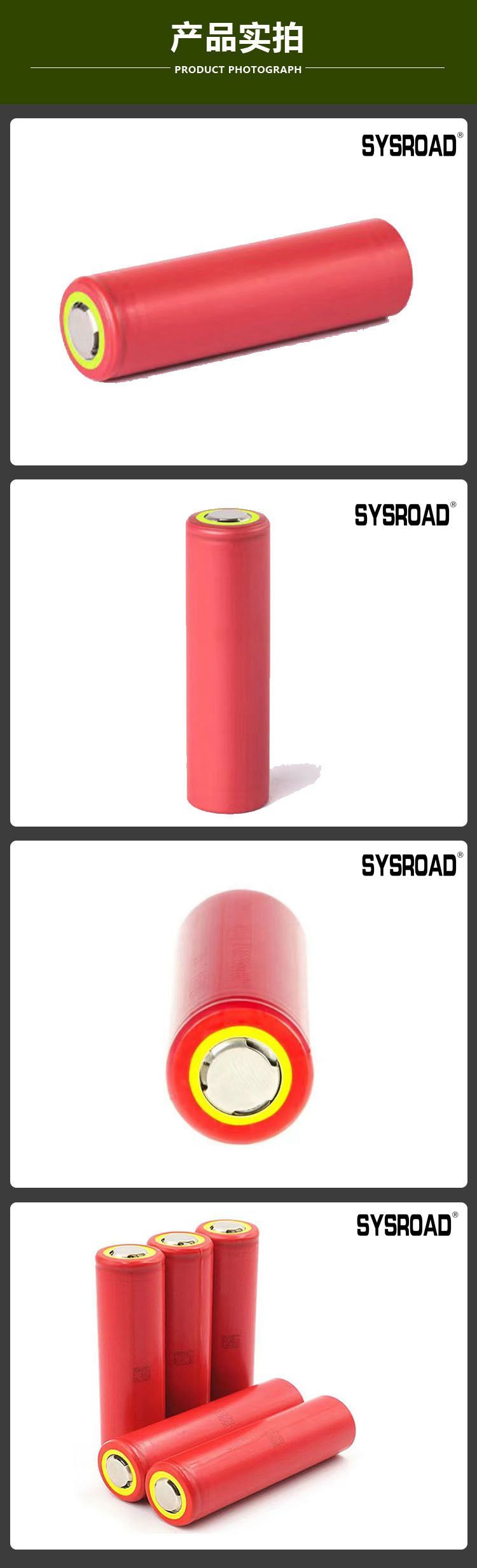

▌Product Details

Sanyo ralated models for your choice:

BRAND	Models	CAPACITY	discharge rate	PVC TUBE	CELL series
SANYO	16650ZTA	2500mAh		purple	capacity cell
	18500FK	1620mAh	4A		electronics use
	18650WX	1500mAh	25A		high rate cell
	18650ZM2	2500mAh	5A
	18650AA	2200mAh		red	mid-rate cell
	18650NSX	2600mAh	20A/8C	red	high rate cell
	18650FM	2600mAh	5A
	18650ZY	2600mAh	6A	red	capacity cell
	18650ZTA	3000mAh	5A	red	capacity cell
	18650BF	3400mAh		red	capacity cell
	18650GA	3500mAh	10A	red	mid-rate cell
	20700B	4250mAh	12A
