SN18650 VTC6 3000mAh 3.7V lithium rechargeable battery 30A high rate discharge
Classification:
Lithium Battery Cell (cylindrical)

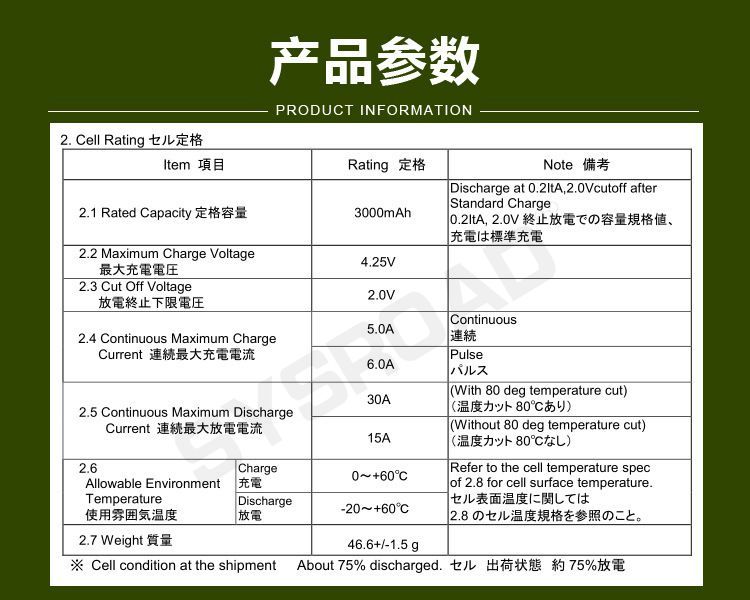

▌Specifications
Specification: SONY US18650-VTC6
Nominal voltage: 3.6
Number of cycles: 500
Nominal capacity: 3000mah
Scope of use: power storage
Product certification: MSDS, UN38.3
Charging time: 1.5-2 hours
Cell standard: A product cell
Battery type: ternary lithium battery
Combination method: single section
Battery cap: flat
Charging voltage: 4.2±0.05 V
Discharge voltage: 3.6V
Charging current: 1c
Discharge current: 30A
Maximum continuous discharge current: 30A
Maximum continuous charging current: 0°C-45°C
Series: 18650
Weight: 49
Storage temperature: -20~60°C
Product size: 18*65
Shelf life: 1 year
SONY ralated models for your choice:
BRAND | Models | PVC TUBE | CELL series |
SONY | VTC6-3000mAh 30A | green | high rate cell |
VTC5-2500mAh 30A | green | high rate cell | |
VTC4-2000mAh 30A | green | high rate cell | |
VTC3-1600mAh 30A | green | high rate cell | |
V3-2500mAh 10A | green | high rate cell |

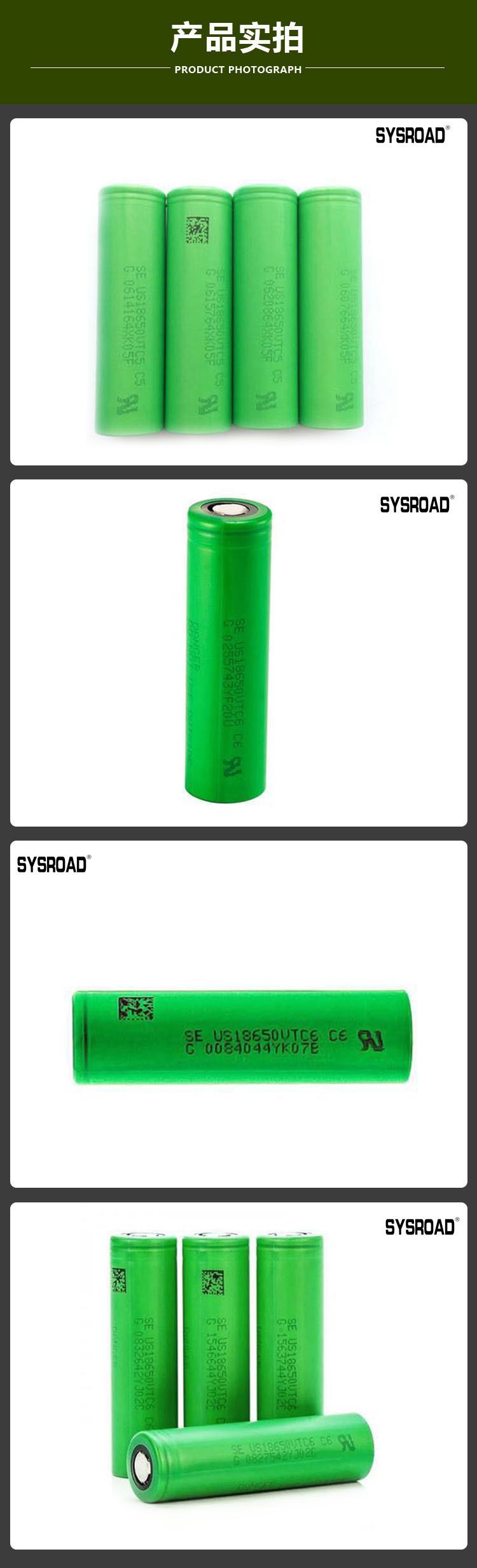

▌Product Details
