LF100MA lithium lifepo4 prismatic rechargeable battery cell long cycle life

Model：LF100MA
nominal capacity：100000（mah）
nominal voltage：3.2V（V）
charging current：0.5C（A）

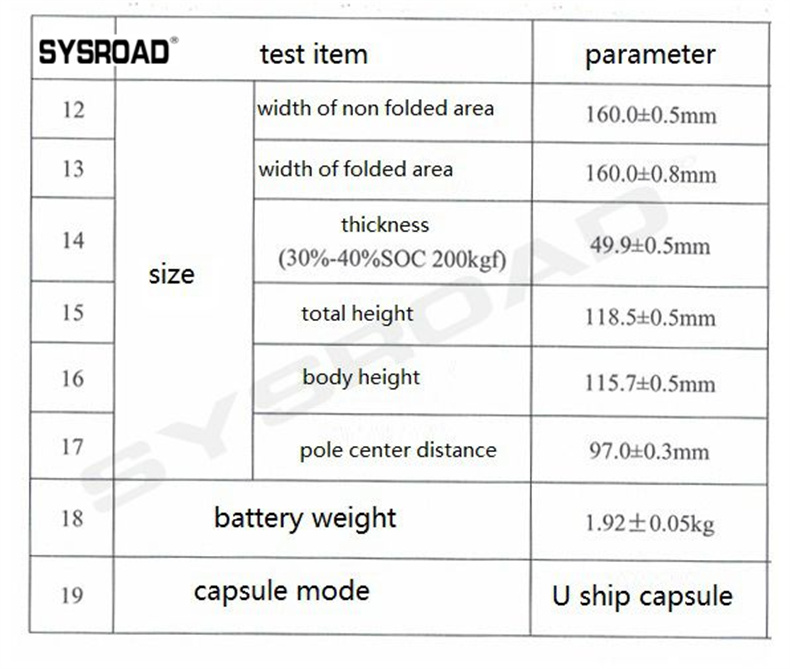

size：118.5mm*160.0mm*50.1mm（mm）
charging voltage：3.65V
storage temperature：-20~45℃

Classification:

Products

Lithium Battery Cell（prismatic）

Online Message

▌Specifications

Model LF100MA
Rated capacity 100000 (mah)
Standard voltage 3.2V (V)
Charging current 0.5C (A)
Overall dimension 118.5mm * 160.0mm * 50.1mm (mm)
Rechargeable Yes
Charging voltage 3.65V
Storage temperature - 20~45 ℃

NO	ITEM		PARAMETER	NOTE
1	nominal capacity		100Ah	(25+/2)℃,standard charge&discharge
2	nominal voltage		3.2V
3	inner resistance(1kHz)		≦0.5mΏ
4	standard charge and discharge	charge/discharge current	0.5C/0.5C	(25+/2)℃
		charge/discharge cut off voltage	3.65V/2.5V
5	max charge/discharge currency	continuous charge/discharge	1C/1C	Reference continuous/pulse ammeter
		pulse charge/discharge(30s)	2C/2C
6	Recommended window for SOC		10%-90%	N.A.
7	charging working temperature		0℃-55℃	Reference continuous/pulse ammeter
8	discharge working temperatue		-20℃-55℃
9	storage temperature	short period	-20℃-45℃	N.A.
		long period	0℃-35℃
10	Storage humidity		<95%
11	monthly discharge rate		≦3%/m	(25+/2)℃,30%-50% SOC storage
